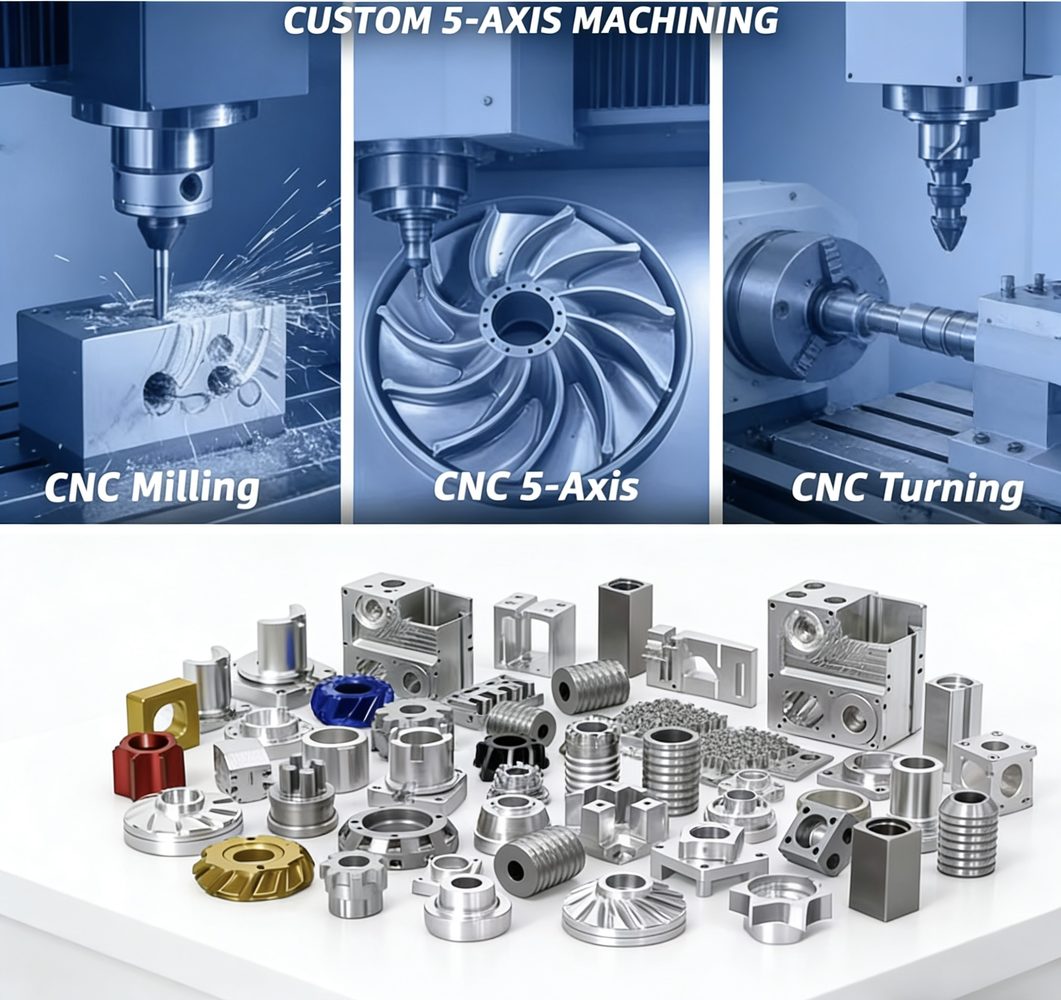

Robotics parts
Brackets, plates, end-effector mounts, housings, shafts, bushings, and custom fixtures
Quick technical answer
Which drawing details matter for CNC-machined robotics parts?
Robotics drawings should identify the interfaces that control motion, payload, alignment and service access. Buyers should define robot or actuator mounting patterns, datum chains, fitted features, collision and cable clearances, weight or stiffness targets, moving-part relationships and the inspection points used to confirm repeat assembly.
| Requirement | Practical guidance |
|---|---|
| Best fit | Robot brackets, housings, mounts, plates, shafts, adapters and mechanical interfaces made from controlled drawings. |
| Tolerance focus | Prioritize mounting patterns, bearing or dowel fits, axis relationships, flatness, perpendicularity and motion clearances. |
| Inspection | Verify interface dimensions, hole position, fitted features, threads and any datum relationships that control robot assembly. |
| RFQ input | Robot or actuator reference, drawing revision, payload or motion notes, material, finish, quantity and validation needs. |
Technical review: XHR Precision Machining
Key Service Details
Send drawings, material, quantity, tolerances, surface finish, and delivery requirements. XHR will review manufacturability before quotation.
Design focus
Weight, stiffness, hole position, flatness, assembly fit, and repeatability
Materials
Aluminum, stainless steel, steel, brass, copper, and engineering plastics
Inspection
Critical hole positions, datum faces, bearing fits, and assembly surfaces can be checked
Manufacturing Notes for Buyers
Machining Requirements for Robotics Hardware
Robotic parts often need consistent mounting holes, stable datums, light weight, clean edges, and reliable assembly fit. XHR reviews these features before quoting.
Prototype and Iteration Support
Robot builders often revise parts after testing. XHR supports prototype machining and low-volume repeat batches as designs mature.
Typical Applications
- Robot arm brackets and plates
- End-effector and gripper mounts
- Sensor housings and covers
- Precision shafts, spacers, and locating components
Factory and Parts Gallery
Selected workshop and part images from XHR's website media library. More project photos can be added as case studies grow.
RFQ Checklist
- 2D drawing and 3D model when available
- Material grade, substitute options, and required certificates
- Prototype quantity, batch quantity, and expected repeat orders
- Critical tolerances, threads, datums, and inspection requirements
- Surface finish, cosmetic faces, packing, and delivery destination
Related CNC Machining Pages
FAQ
Can XHR machine robot brackets from aluminum?
Yes. Aluminum robot brackets, plates, and mounts are common CNC milling projects.
Can you support prototype robotics parts?
Yes. XHR supports prototype and low-volume machining for robotics development and testing.
Which features should be marked as critical?
Bearing fits, locating holes, datum faces, mounting surfaces, and assembly interfaces should be marked clearly.
Request a Quote for CNC Machining for Robotics Parts
Send drawings and requirements to XHR. We will review process, material, tolerance, finishing, delivery, and packing needs.
